CMU Retaining Wall Guide: Drainage, Reinforcement & Planning
A CMU retaining wall is not simply a block wall with dirt on one side. It is a soil-retaining structure that must resist lateral pressure, manage water, transfer loads safely into the ground, and remain durable through changing seasons. Reinforced and grouted CMU can be an excellent retaining-wall system when it is properly designed. The governing question is not “can block hold the soil?” but “has the entire wall-and-drainage assembly been designed for this site?”

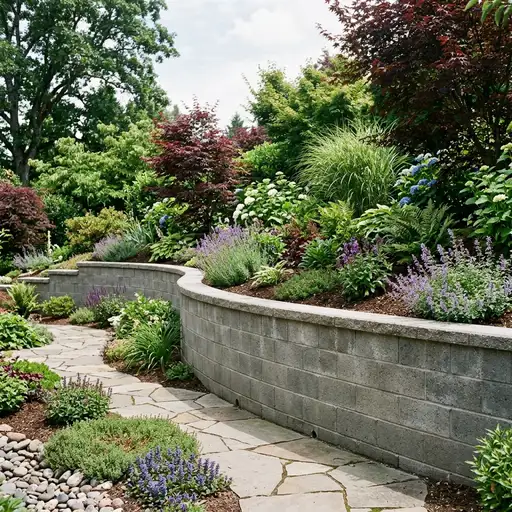

Proper drainage and reinforcement are key to a lasting CMU retaining wall.
What makes a CMU retaining wall different?
Unlike a freestanding landscape screen, a retaining wall resists a continuous sideways force. Soil pushes more as the retained height increases, and water trapped in that soil adds substantial hydrostatic pressure. A wall may also see surcharge loads from a parked vehicle, building, slope, fence, or equipment above it. These loads are transmitted through the block web and grout to the reinforcement and footing, then to the supporting soil. If any part of the chain is inadequate, the wall can crack, slide, rotate, or overturn.
A typical engineered CMU retaining-wall assembly includes a reinforced concrete footing, vertical reinforcing bars aligned with grouted block cells, horizontal reinforcement in bond beams where specified, a wall thickness and grout pattern selected for the loads, and a water-management system on the retained side. Some designs use a cantilevered footing with a heel under the retained soil; others require additional measures based on the soil report and geometry. Those are design choices, not rules to copy from a neighboring wall.
Start with the site investigation and permitting
Document the height from the bottom of the footing to the finished grade on the high side, the slope above and below the wall, soil type, drainage path, nearby structures, and utilities. A wall that is only four feet high may still retain a sloped bank or driveway load that changes its design substantially. Clay soils, fill, high groundwater, frost action, and poor bearing conditions all deserve special attention.
Ask the building department about permit thresholds, zoning setbacks, fence rules, and drainage requirements. Contact utility locating services before excavation. If the wall affects a property boundary or directs water toward a neighbor, resolve those issues before layout. A designer may request a geotechnical report for taller or more complex conditions; that report supplies soil parameters that cannot be guessed from a photo or a generic online detail.
Drainage is structural, not cosmetic
Water is a retaining wall’s most persistent enemy. When soil becomes saturated, it weighs more and transmits pressure to the wall. A drain system reduces that pressure by moving water away before it accumulates. The exact components depend on the design, but commonly include free-draining aggregate directly behind the wallrforated drain pipe at the footing elevation pitched to an approved outlet, filter fabric selected for the soil, and a drainage or waterproofing layer on the soil side of the CMU.
Never direct a footing drain where it will undermine the wall, flood a neighbor, or discharge illegally. Keep the outlet accessible for inspection where possible. On the surface above the wall, slope soil and hardscape to keep runoff from pouring behind it. A cap that sheds water, sound flashing at transitions, and properly sealed penetrations also extend the life of the assembly.
Footing and reinforcement: follow the approved drawings
The footing resists bearing pressure, sliding, and overturning. Its width, thickness, reinforcement, and depth are driven by wall height, soil, frost conditions, and the loads above and behind it. The footing must be placed on undisturbed or properly prepared bearing material—not loose topsoil, organic fill, or a wet trench bottom. Vertical dowels are commonly set into the footing so they align with designated block cells, but their spacing, embedment, and lap are part of the design.
As the CMU is laid, vertical bars are kept centered in their cells and horizontal steel is placed in specified courses or bond beams. The reinforced cells are filled with grout compatible with masonry construction. This makes the wall behave as a reinforced system; hollow, ungrouted cells should not be assumed to deliver the same capacity. Keep mortar droppings out of cells, tie bars securely, and provide the cover and development length shown on the drawings. Inspection may be required before concrete, grout, waterproofing, or backfill conceals the work.
Choose materials that work as one assembly
Modern “cinder block” sold in most yards is concrete masonry unit (CMU), generally specified to meet the applicable unit standard for the application. The block, mortar, grout, reinforcing, and coatings must be compatible with the drawings and exposure conditions. Type S mortar is common for many CMU walls, but mortar selection is not a substitute for a structural design. Use the designated block size and strength class, and order bond-beam or lintel units as needed rather than cutting standard units in ways that interrupt reinforcement.
Estimate quantities before ordering, including a reasonable allowance for cuts and breakage. The CMU Block Calculator can calculate net wall area after openings, block count, mortar, rebar, optional grout volume, and an initial material-cost estimate. For a retaining wall, enter the figures from the drawings; do not use a generic rebar spacing or fully grouted option to replace a design.
Build sequence: quality checks at each stage
- Excavate and prepare the subgrade. Verify elevation, bearing condition, utility clearance, and trench safety.
- Form and pour the footing. Set reinforcement and dowels accurately, then protect the concrete while it cures.
- Lay and level the first course. Dry-fit corners, snap lines, and make the first course dead level. Every course above depends on it.
- Build the reinforced masonry. Maintain bond, line, plumb, joint consistency, and clear cells for grout placement.
- Install drainage and waterproofing. Use the system shown on the plans before the retained side is hidden.
- Place grout and backfill in controlled stages. Respect cure time and inspection requirements; do not compact or surcharge the wall prematurely.
For more detail on laying quality masonry courses, see How to Build a CMU Block Wall. That guide covers layout, mortar handling, line work, and first-course checks. Here, the retaining-specific details—water, reinforcement, footings, and backfill—remain the deciding issues.
Backfill slowly and deliberately
Backfill is a construction operation, not a final cleanup step. Use the specified free-draining aggregate zone, place remaining backfill in lifts, and compact according to the project requirements. Keep heavy compaction equipment away from the wall until the design and cure conditions allow it. The worst time to discover that the wall or drain system is incomplete is after several tons of saturated soil have been placed against it.
Maintain positive surface drainage away from the wall after final grading. Watch the wall during its first rainy season for standing water, clogged outlets, erosion, or movement. Correct drainage problems promptly rather than covering them with more soil or decorative stone.
Common retaining-wall failures and how planning prevents them
- Bulging or leaning: often linked to inadequate reinforcement, footing design, drainage, or premature backfill.
- Cracking at corners or joints: can result from differential settlement, missing movement details, or restrained shrinkage.
- Water staining and efflorescence: signal that water is moving through the assembly; investigate drainage before treating appearance.
- Blocked drain pipe: prevented by suitable aggregate, fabric where specified, correct slope, and a maintainable outlet.
- Undermining: caused by uncontrolled discharge or erosion at the footing; manage water at the top and bottom of the wall.
CMU or poured concrete for your retaining wall?
Both reinforced CMU and poured concrete can work when engineered correctly. CMU can be useful where material must be carried into a confined site, where the wall steps with the terrain, or where a masonry crew is readily available. Poured concrete can suit a straight, high-load wall with good forming and truck access. The right choice depends on the design, site logistics, crew capability, and the detailed quote—not an assumption that one is universally stronger.
Our CMU vs. poured concrete wall comparison examines those tradeoffs in more depth. Whichever system is selected, the drainage design and proper construction sequence deserve the same attention as the visible wall face.
